Product Description
Product Application

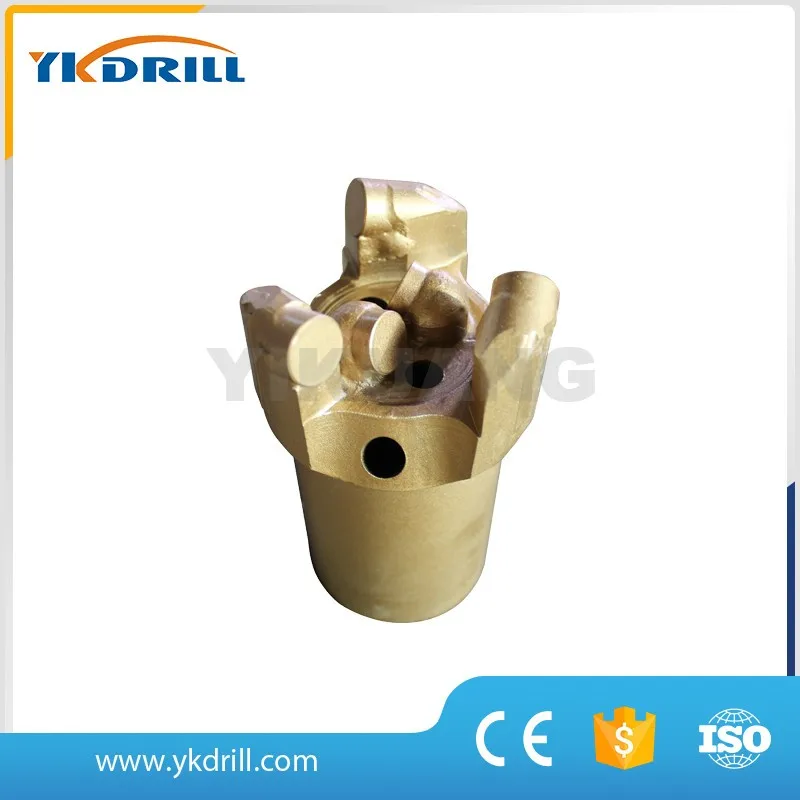

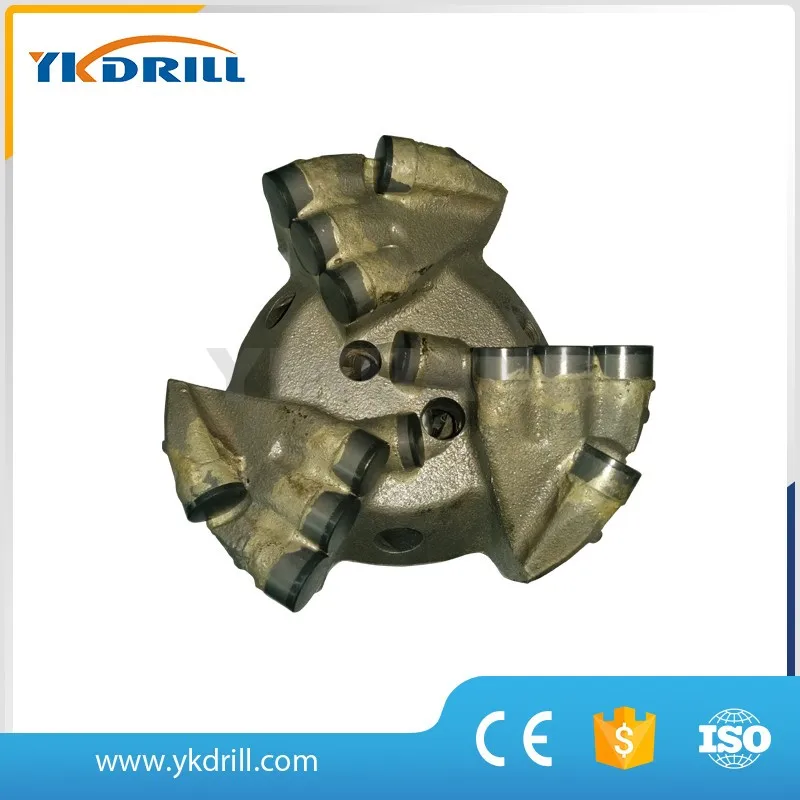

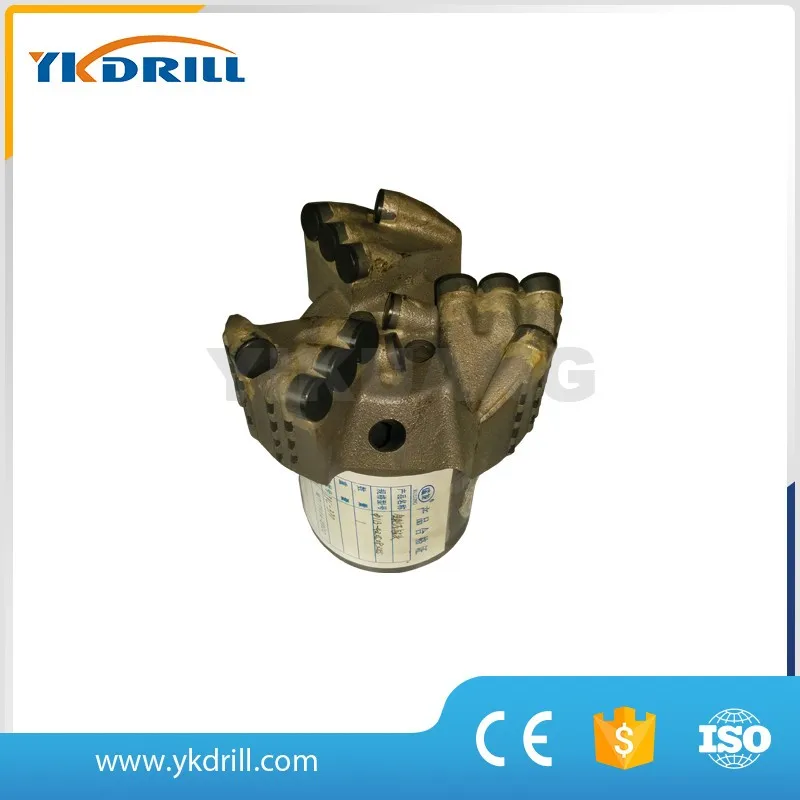

1- PDC cutters for high speed drilling
2- All cutter are premium grade for extended bit life and durability
3-Cutter Layout is force balanced to drill aprecise roun hole and reduce bit whirl
4-Large junk slots and flushing ports
5-Advance geometric design for faster penetration
6- Gauge pads have tungsten carbide inserts for maximum wear resistance
|
specifications
|
|||
|
Size
|
Height mm
|
Diameter
|
No. PDC
|
|
60
|
120
|
6
|
5
|
|
75
|
130
|
8
|
6
|
|
94
|
130
|
8
|
8
|
|
113
|
140
|
10
|
5
|
|
133
|
150
|
14
|
6
|
|
Working parameter of Available Model
|
|||
|
Dia m(mm)
|
weight on bit( KN)
|
Rotary speed (RPM)
|
Connection typ
|
|
75
|
4.8-12
|
200-300
|
pin / box thread connection
|
|
94
|
6.4–16
|
150-250
|
|
|
113
|
8.8-22
|
120-200
|
|
|
133
|
15-30
|
100-200
|
|
|
153
|
15-30
|
100-200
|
|
|
173
|
15-30
|
100-200
|
|
|
193
|
18-44
|
100-150
|
|
|
215
|
18-44
|
100-150
|
|
size and types that are not shown above can be customized according to speciation drilling requirements.
